  3. Co2 laser cutter 1300×2500 – 130 – 150 w – servo motors
  • co2 laser cutter 1300 x 2500

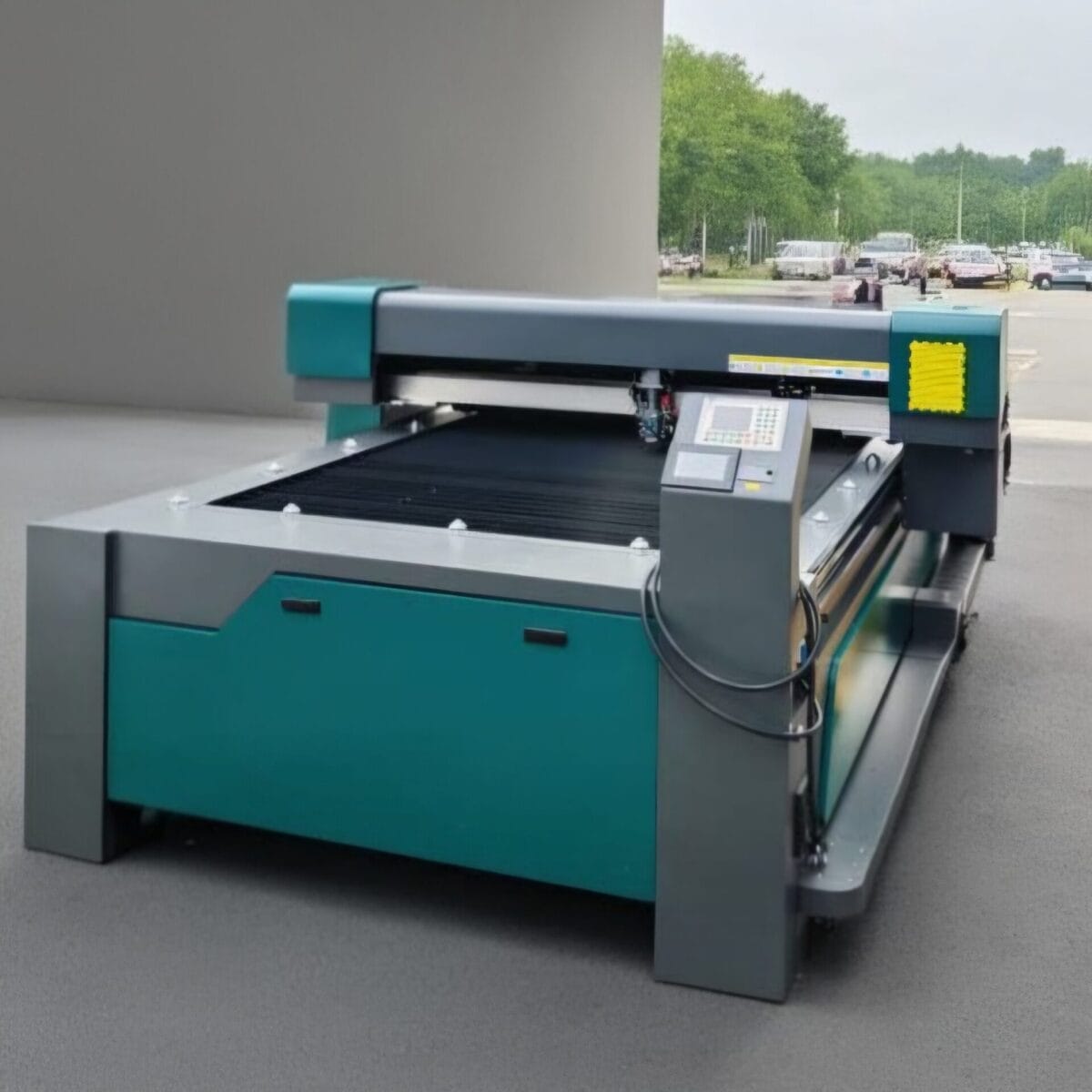

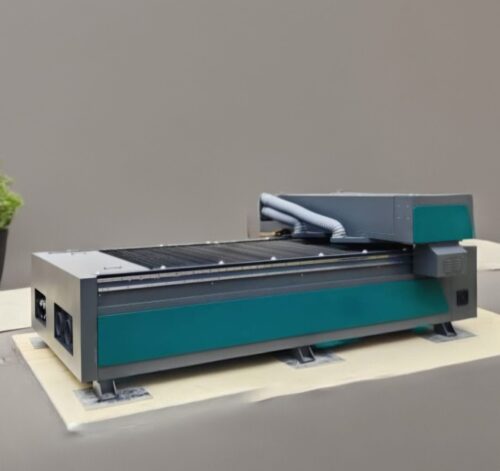

Co2 laser cutter 1300×2500 – 130 – 150 w – servo motors

Από: €14,000.00

Co2 laser cutter 1300 * 2500 automatic up and down table-Price does not include VAT. 24%
✓ Έως 12 δόσεις

Χρειάζεστε περισσότερες πληροφορίες;

Συμπληρώστε τα στοιχεία σας και θα σας καλέσουμε να σας λύσουμε όλες τις απορίες σας!

Co2 laser cutter 1300×2500 Co2 laser cutter 1300×2500 Co2 laser cutter 1300×2500

Control System
DSP (original ruida)
Desktop

1300 mm x 2500mm
Laser tube type (EFR top quality)
Glass, sealed, carbon dioxide (Co2)

Laser Power
130W
Voltage
220V
Driver Type
SERVO MOTORS AND DRIVERS LEADSHINE
Maximum speed
1000mm / s
2500 DPI resolution
Positioning accuracy
0.01mm
PC Interface
USB2.0, USB Disk and LAN
Software
rd ruida
Supports

HIWIN linear guide 15mm (top quality guides)
types of graphics
HPGL, BMP
Axle Bearing and Driver Bearing HIWIN, SKF

, GIF, JPG, JPEG, DXF
,
, DST, AI
Machine Dimensions (Length x Width x Height)
3000mm x 1460mm x 1270mm
Net Weight
1000 Kg
Distance
MICROSTEPPING MOTORS KAI DRIVERS
focus (top quality USA focal lens)
0.8 cm 2cm 3.2cm 5.1cm
LEADSHINE H MOON’S (top quality)
The package includes:
CE, FDA
Industrial Type Water Refrigerator (cw-5200)
Air Pump
Instruction Manual (CD) Vent Turbine
