Specification

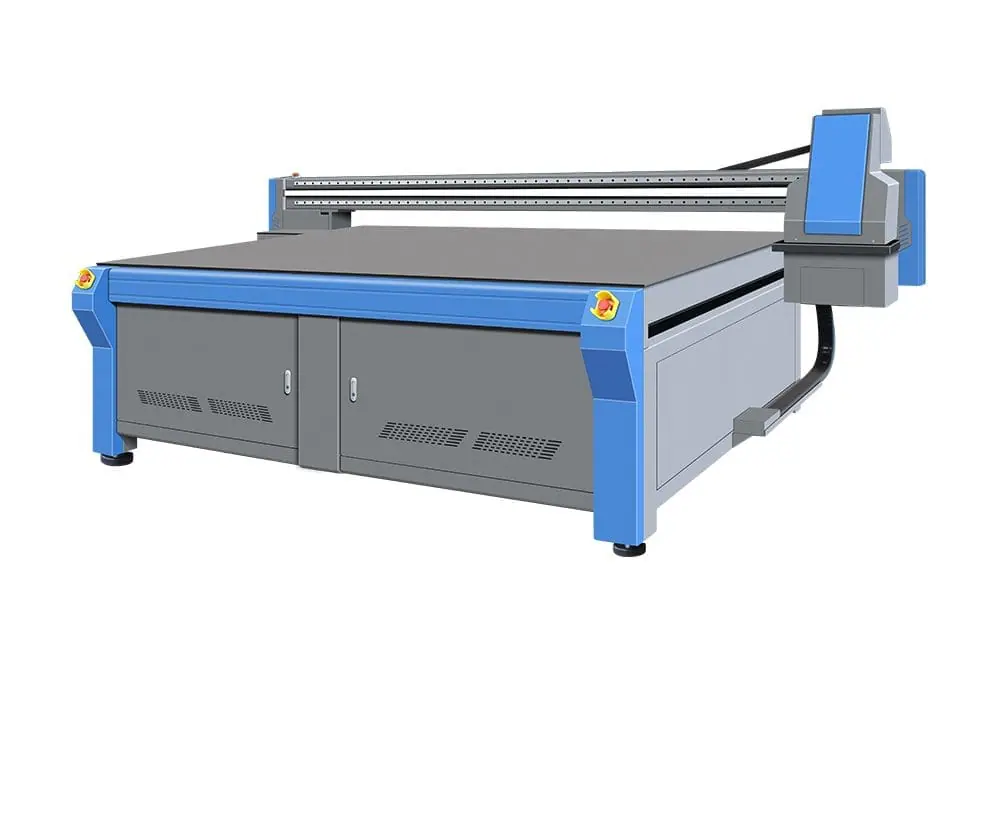

| UV PRINTER 2513 | |||
| Printhead | Piezoelectric Printhead DX 8 G 3.5PL | ||
| Printhead Height | 10 cm MAX | ||
| Media Size | 2500 x 1300 (mm) | ||
| Media Types | Glass, Acrylic, Ceramic, Metal, Paper, Wood, Leather, PVC, PP, PE, PTFE… | ||
| Speed Nomal Quality | 24 sqm/h | ||
| Speed Standard Quality | 14 sqm/h | ||
| Speed Photo Quality | 10 sqm/h | ||
| Ink Type | UV Ink | ||
| Ink Color | CMYK / CMYKLcLm / White or Varnish | ||
| Ink Capacity | 500 ML per main tank of each color, Automatic ink quantity monitoring, non-stop with ink | ||
| Dry System | UV_LED light system | ||
| Resolution | 1440, 2160, 2880 dpi | ||
| Rip Software | MainTop / PhotoPrint (Option) | ||
| PC Operation System | Windows 7 32/64bit RAM≥8G | ||
| Environment | Temperature: 18°C – 26°C ; Humidity : 40% – 60% | ||
| Power Supply | Max 3.6KW, AC, 50/60Hz, 220V(±10%)>12A | ||
| Image Format | TIFF, JPEG, EPS, PFD | ||
| Machine Size | L3700 W2300 H1550 (mm) | ||
| Packing Size | L3800 W2400 H1650 (mm) | ||
| Machine Weight | 900 KG | ||
| Packing Weight | 1000 KG | ||
