At a glance
- Working area
- Desktop 6090
- Power
- Spindle 1,5 kW
- Feature
- Mach3
- Ideal for
- Engraving & prototyping
- Price from
- €4,900.00 + 24% VAT
The CNC Router 6090 belongs to our range of professional CNC router machines for wood and MDF.

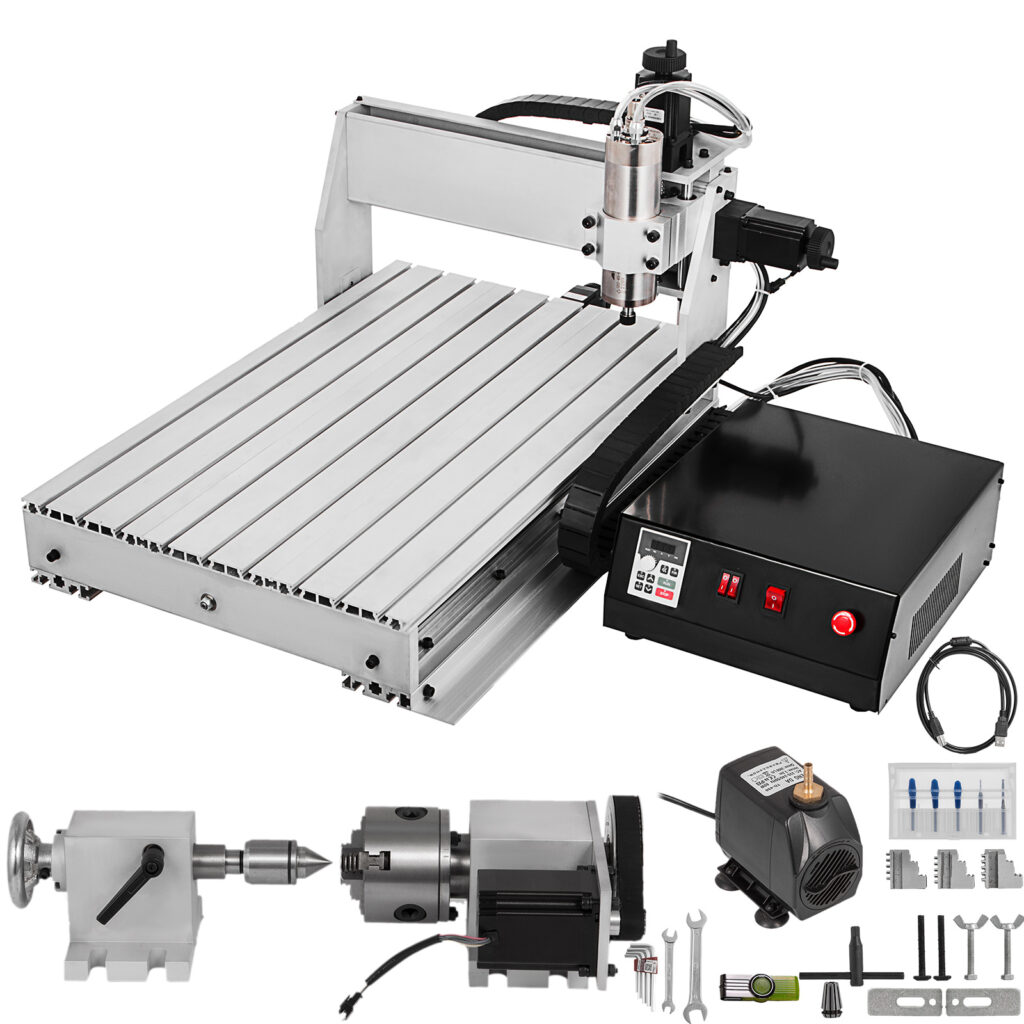

4 Axis CNC 6090 Engraving Milling Machine
The CNC 6090 is suitable for both industrial and hobby use. The CNC router 6090 is a benchtop machine and easy to operate from your computer.Why choose us?
- Extensive industry experience
- High-precision axes and drive motors
- Replacement machine in case of breakdown
- Mach 3 controller
- Step-by-step training
- 24/7 technical support

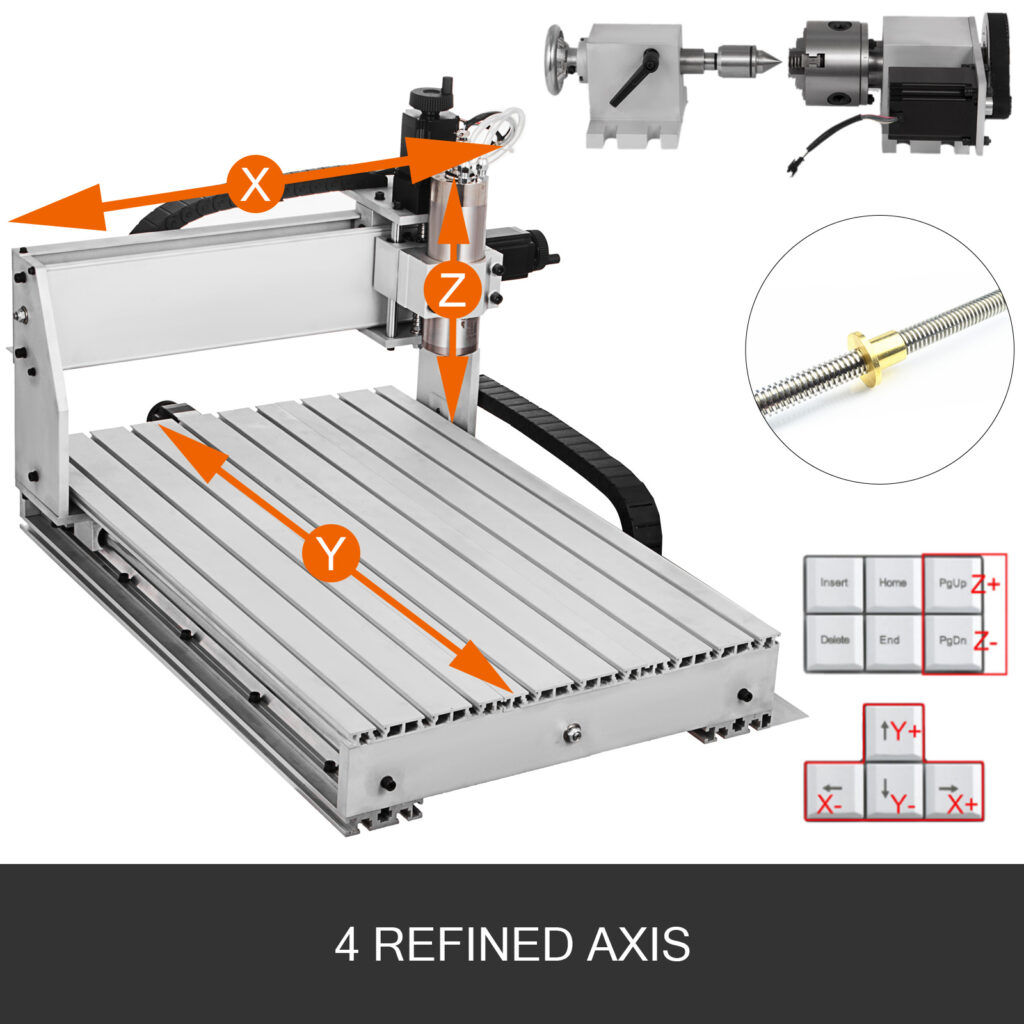

4th axis
Our CNC routers are equipped with a 4th axis, so you can carry out 360-degree engraving

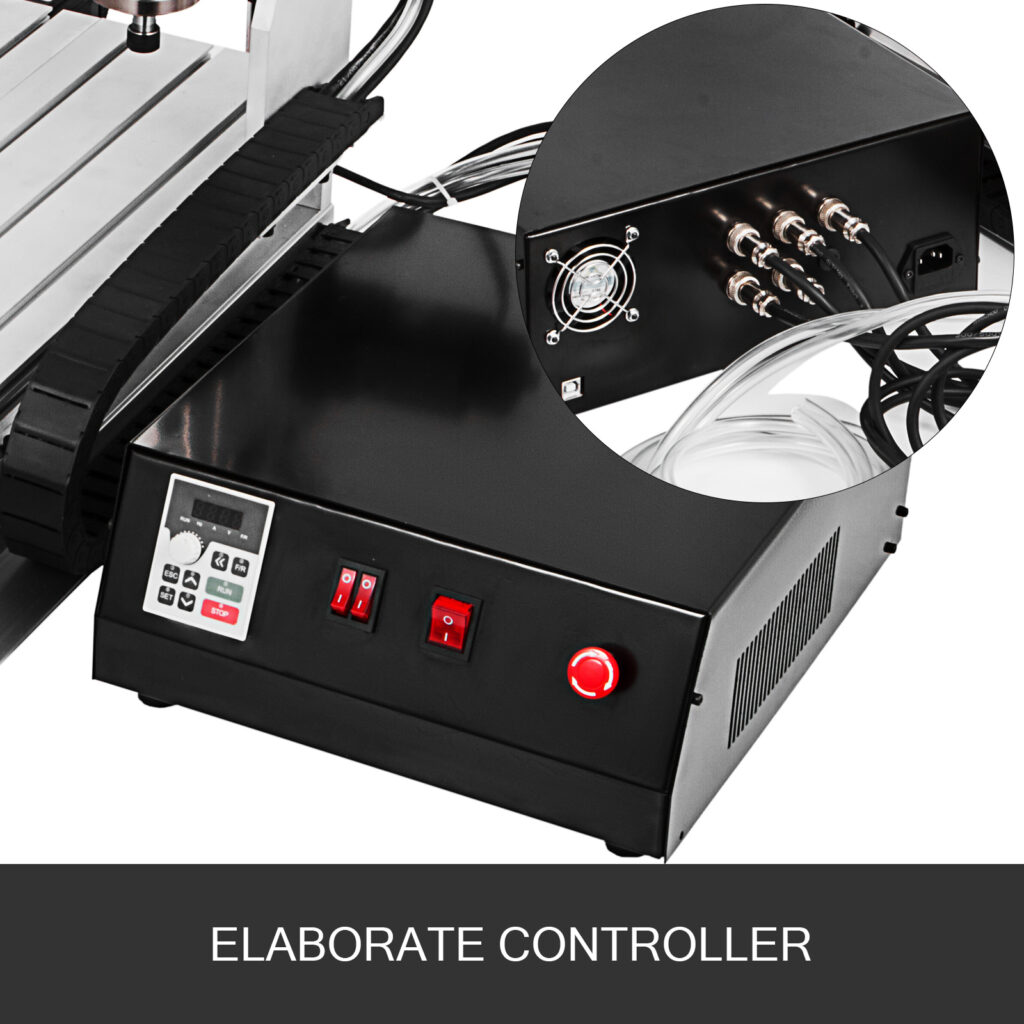

Advanced controller
Our CNC machines come with a built-in Mach3 controller, which makes the machine very easy to operate from a computer. They also feature a built-in, state-of-the-art inverter and power supply, allowing continuous operation over long periods.

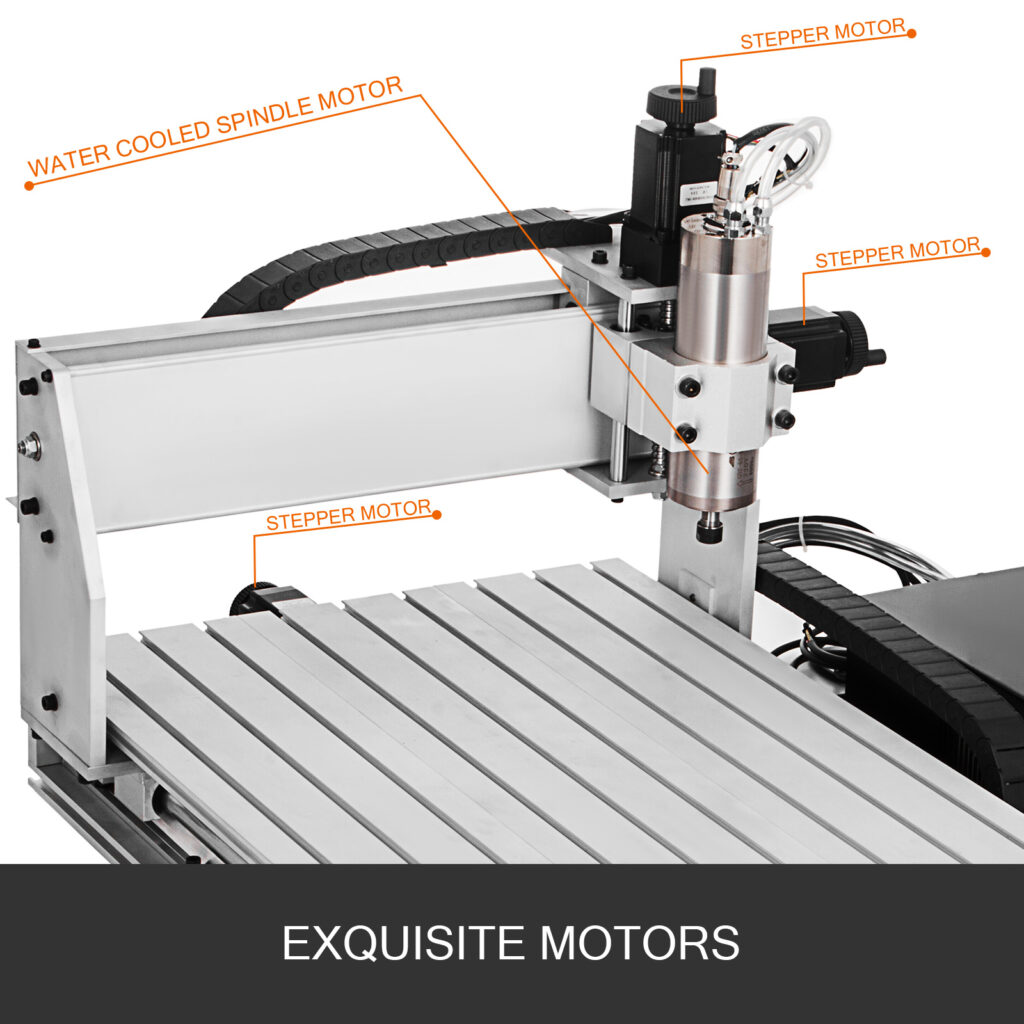

Our machines come with 57 two-phase stepper motors (3A) installed on each axis, connected via couplings for highly accurate, fast motion. The 1.5 kW water-cooled spindle on the Z axis reaches up to 24000 rpm
USB connection
Equipped with a USB flash unit that connects directly to the computer instead of a parallel port..

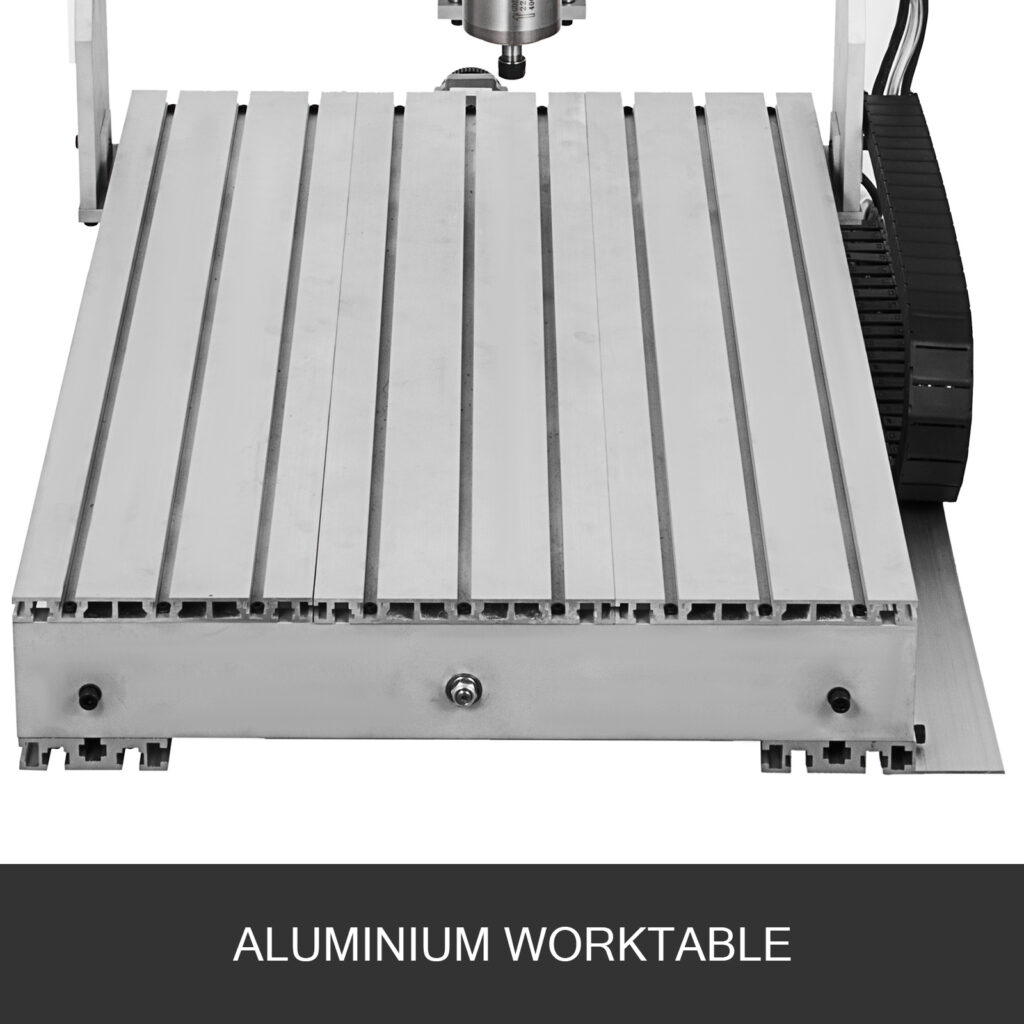

Aluminum construction
Made from 6061 aluminum and 6063 industrial-grade aluminum for high rigidity and durability in long-term use.
Wide range of materials
Engraves and cuts a wide range of materials, such as plastic, wood, aluminum, brass, PVC, PCB and more.
Specifications
- Power: 1800W
- Spindle power: 1.5 kW
- Construction materials: 6061 aluminum alloy + 6063 industrial aluminum
- X/Y/Z axes: 1605 ball screws
- Spindle speed: 0 ~ 24000 rpm (frequency converter speed control)
- Repeatability: ≤0.03mm (0.001″)
- Speed: 0-2000mm/min (varies by material)
- Weight: 80kg
